Desorption electrolysis system

Advantage characteristics:

　　1. Since the solvent vapor desorption is separated from the noble liquid electrolysis separately, the solvent vapor desorption and solvent recycling are realized, which ensures the safety of the process in application.

　　2. Process desorption and electrolysis process separation, automatic monitoring of the whole process, ensuring the safety and economic security of the production process of the gold production process.

　　3. The control system subtly selects the temperature and liquid level detection points and the sensor installation method to ensure the sealing performance of the whole device and eliminate the safety hazard.

　　4. It has the advantages of short electrolysis time, low tail liquid grade, safe and reliable, high degree of automation and good economic benefit. It is widely used by gold enterprises.

working principle:

　　Using NaOH + A desorbent or NaOH aqueous solution, at 150 ° C, flowing through the desorption column carrying gold, desorbing the gold ions adsorbed on the gold-loaded charcoal, into the desorption solution, the gold ions of the desorption solution After the electrolysis cell, electrons are obtained through the electrolysis process, and gold atoms are collected and aggregated on the cathode of the electrolysis cell to form gold powder particles (ie, gold mud), thereby achieving the purpose of desorbing the gold on the gold-loaded charcoal.

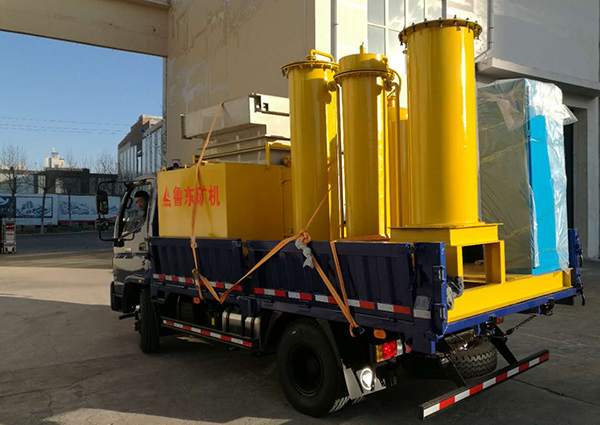

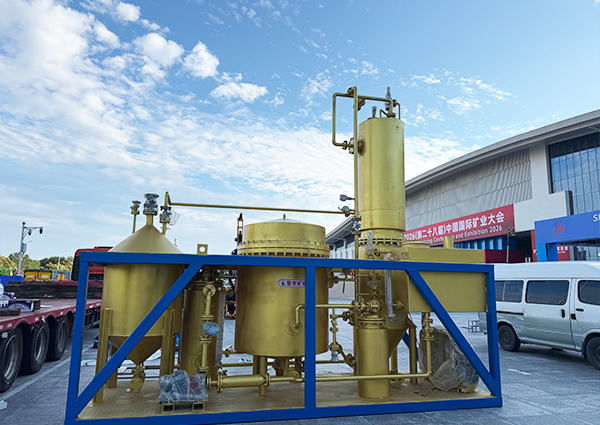

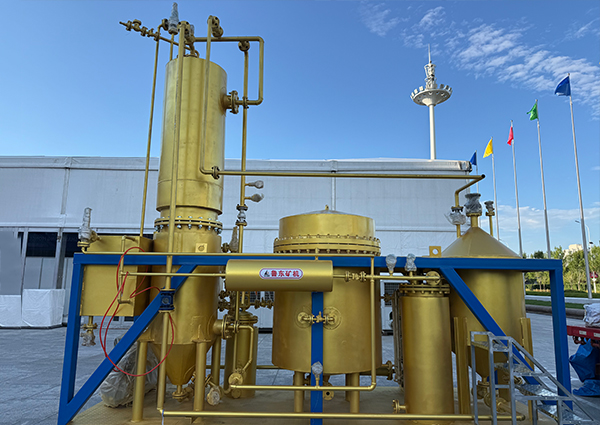

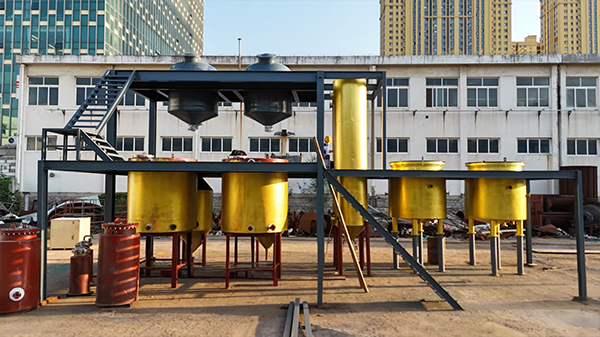

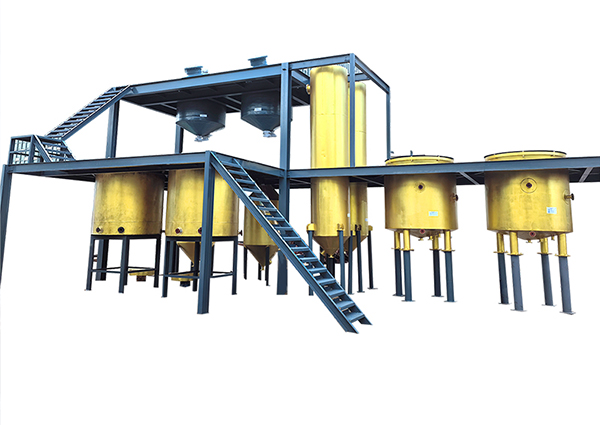

Case picture

High Temperature and High Pressure Desorption-Electrowinning Equipment

High temperature and pressure desorption electrolysis is the core equipment of gold CIL (carbon-in-leach) process. With the effect of high temperature & pressure and chemicals, it quickly desorbs gold from gold-loaded carbon, and separates gold mud directly by electrolysis. It features high desorption efficiency, fast speed and stable operation. It greatly reduces residual gold in lean carbon and achieves high gold recovery rate. Desorption rate can reach 97% to 99.8%; over 92% of our factory's users have a lean carbon grade of less than 50 grams per ton.

High temperature and pressure desorption electrolysis, only needs about 12-15 hours per batch, with thorough desorption and low residual gold in lean carbon. However, the desorption electrolysis time at normal temperature and pressure takes estimate 36 hours. Normal temperature electrolysis consumes more energy and takes more time compared to high-temperature system.
